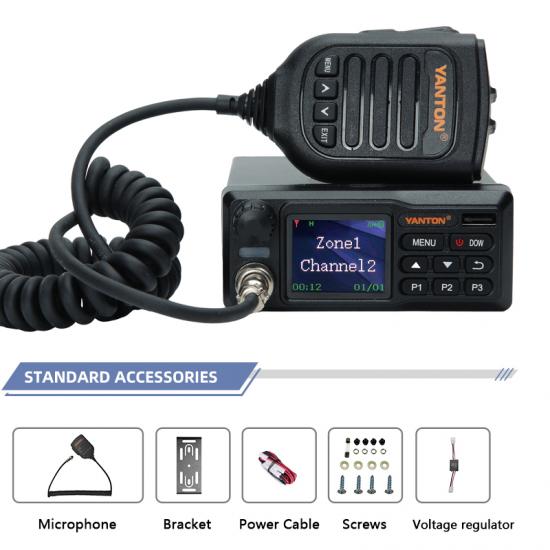

DMR Digital Vehicle Mobile Two-Way Radio

DMR Digital Vehicle Mobile Two-Way Radio

DMR Digital Mobile Radio,The high-performance,  simple-to-use TM-8800 mobile radio are created to give you the immediate, reliable communication you need to keep mobile teams working efficiently.

  • Product Origin:

    China
  • Item NO.:

    TM-8800
  • Shipping Port:

    Quanzhou
  • Color:

    Black
  • Payment:

    T/T,PayPal,Western Union
Product Detail

DMR Digital Vehicle Mobile Two-Way Radio

DMR Digital Mobile Radio,The high-performance,  simple-to-use TM-8600 mobile radio are created to give you the immediate, reliable communication you need to keep mobile teams working efficiently.

Quick Details

Digital/Analog/Analog-digital Modes
Voice Encryption AES256
Frequency: UHF 400-480MHZ or VHF 136-174MHZ
SMS
Individual Call, Group Call, All Call
Remote Stun/Kill /Activate/Revive
Monitor
CSV Contacts 20000; Contacts 1000
1024 Channels, 32 Zone
Emergency Alarm
Call Recording
Scan Function
High/Low Power Selectable
Voice Prompt: English/Russia/Chinese
Noice Canceling (optional)
Record Function (optional)


Specification

General

Frequency

136-174MHZ or 400-480MHZ

Charger port

Universal Serial BUS Type-A

Channels

1024

Operating Temperature

-30°C~ +60°C

Storage temperature

-40°C~ +85°C

channel spacing

 Analog: 12.5/20/25KHz Digital: 12.5KHz

Memory Channel

 1024ch

Frequency Stability

 ±2.5ppm

Dimensions

 145*11*45mm

Weight

 779g

Transmitter

Output power

30W

Modulation Sensitivity

103mW

Spurious RF Components

≤65dB@12.5kHz

Adjacent Channel Power

≤55dB@12.5kHz

4FSK Modulation Accuracy

≤5%

Audio Distortion

≤5%

Frequency Stability

±1.5PPM

Receiver

Analog Sensitivity

0.20μV/-121dBm

Digital Sensitivity

-119dBm (BER ≤5%);-117dBm (BER ≤1%)

Intermodulation

≥55dB @12.5 kHz

Adjacent Channel Selectivity

≥55dB@12.5kHz

Co-channel Rejection

≥-8 dB@12.5kHz

Blocking

≥90 dB

Audio Distortion

≤5%

DMR Digital Mobile Radio

Service


Package:Each package in gift box; 20PCS in strong carton
Payment:Paypal, Western Union, T/T, LC
Lead time:Sample: 1-3 working days
Wholesales order:500PCS within in 5-7 days
OEM order:7-15 days after receiving your deposit and confirm sample package design.
Shipping

Express:door to door service DHL,UPS, FEDEX, TNT and so on.
By air:To destination airport, need to assist clear customs, without door to door service.
By sea:To destination port, need to assist clear customs, without door to door service.
The shipping cost depends on weight and dimension, will recommend the cheapest and safest way according your detail quantity.
Shipping period depend on your location. If deliver by express, it take 3-7 days from China to destination country. Some remote need more 1-3 days.
